Water Extinguishing

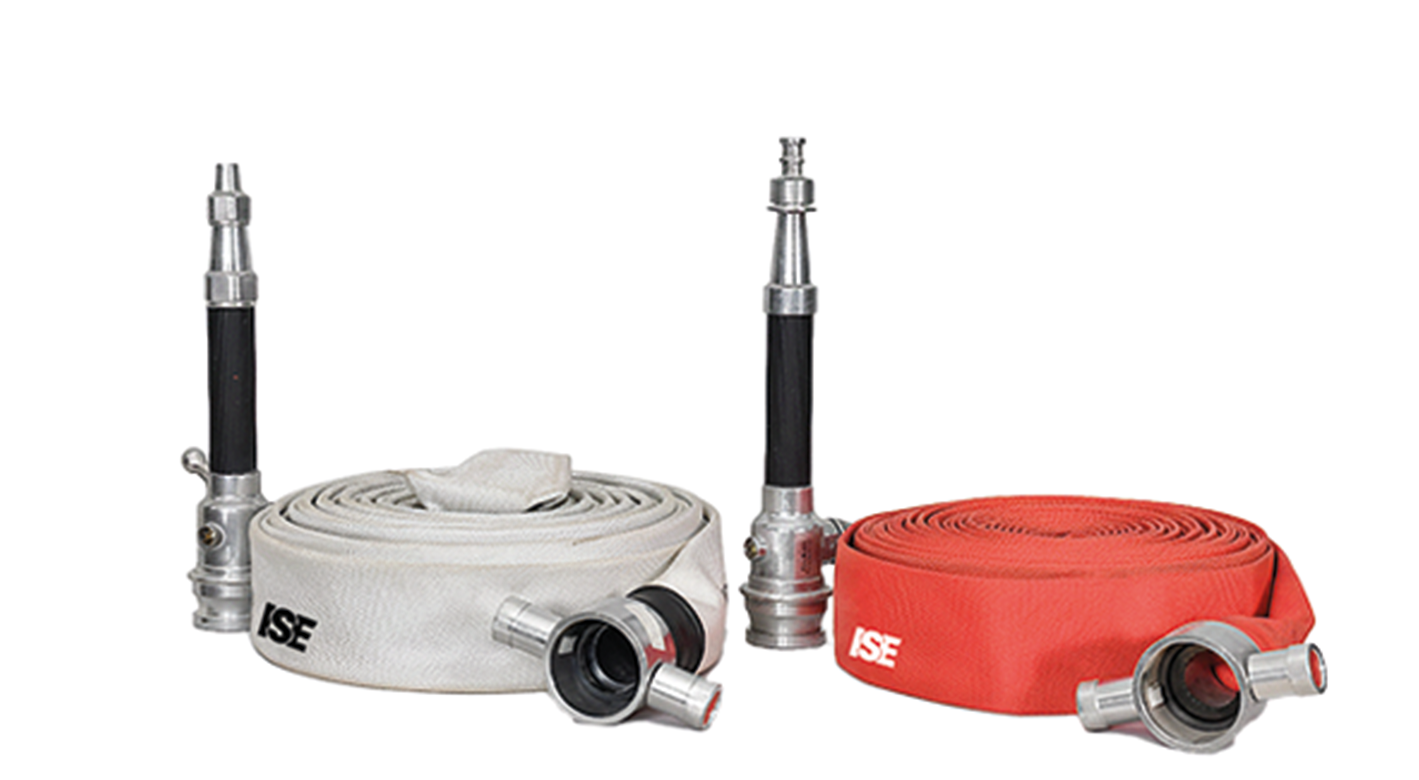

ISE – 65FHR Fire Hose Reel 2.5 inch

Constructed for high-performance durability, this fire hose features a robust external and internal rubber lining integrated with polyester fiber reinforcement. It is specifically engineered to resist oil, acids, alkaline, and various industrial chemicals, making it ideal for harsh environments. The hose comes in a standard length of 30 meters and is manufactured in strict compliance with BS 6391 Type 3 standards, with couplings meeting BS 336:1989 specifications.

Description Value
Working Pressure 16 bar
Burst pressure 50 bar
Hose size 2.5 inch
Hose length 30 meter
Model No. ISE - 65 FH

Technical Specification

  • Lay flat, non-percolating delivery hose.
  • High-tenacity circular woven polyester fiber.
  • "Unified" construction with an internal and external PVC rubber blend extruded through the weave.
  • Effective from -30°C to +80°C

Description

  • 2.5-inch diameter flat fire hose.
  • Equipped with British Standard (BS) Male and Female instantaneous aluminum couplings at each end.
  • Secured with 1.6 mm galvanized wire to ensure a durable connection between the hose and the couplings.
