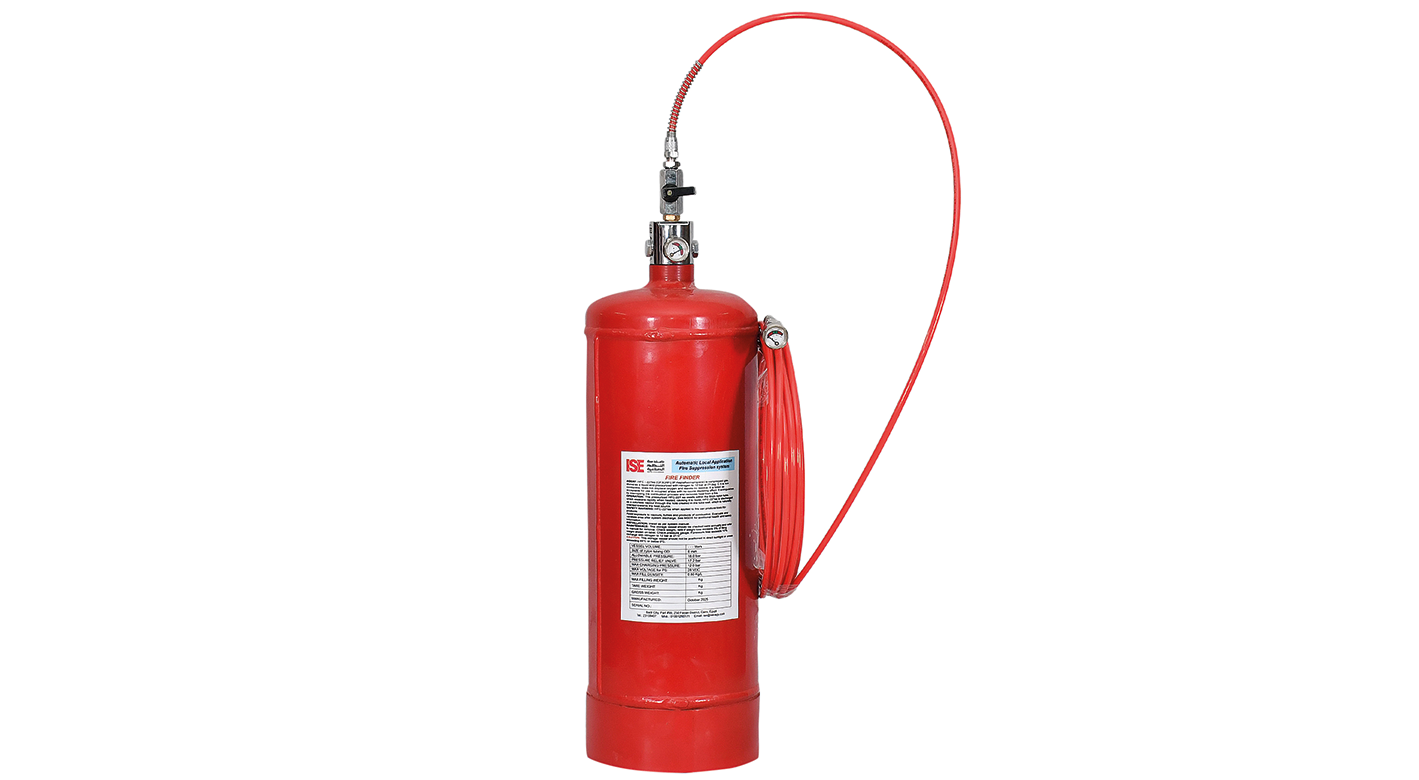

Designed as a cost-effective automatic solution, this system is ideal for protecting sensitive environments from electrical fires. It utilizes HFC-227ea (FM-200), a clean extinguishing agent that is both electrically non-conductive and residue-free, ensuring the safety of delicate electronic equipment. The hardware consists of a high-grade welded steel cylinder finished in RAL 3000 red and a durable chrome-plated brass valve. Pressurized with nitrogen (N2) to 12 bar at 21°C, the system is engineered to operate reliably within a temperature range of 21°C to 45°C. Notably, it functions as a completely pneumatic unit, requiring no external electrical power source for activation.

Technical Specification

• Cylinder Capacity: 4L / 6L / 12L or 1KG up to 10KG
• Max. Operating Temp.: 0°c to 45 °c
• Max. Operating Pressure: 12 bar
• Test Pressure: 15 bar
• Detection tube max length: 10mt / 15mt
• Clean Agent: HFC-227ea
• Cylinder Empty Weight: 4.5KG / 5.6KG / 6.6KG
• Gross Weight: 5.50KG / 6.5KG / 7.6KG / 9.6KG / 10.6KG / 12.6KG / 14.6KG / 16.6KG
• Model No.: ISE – FF-FM200
