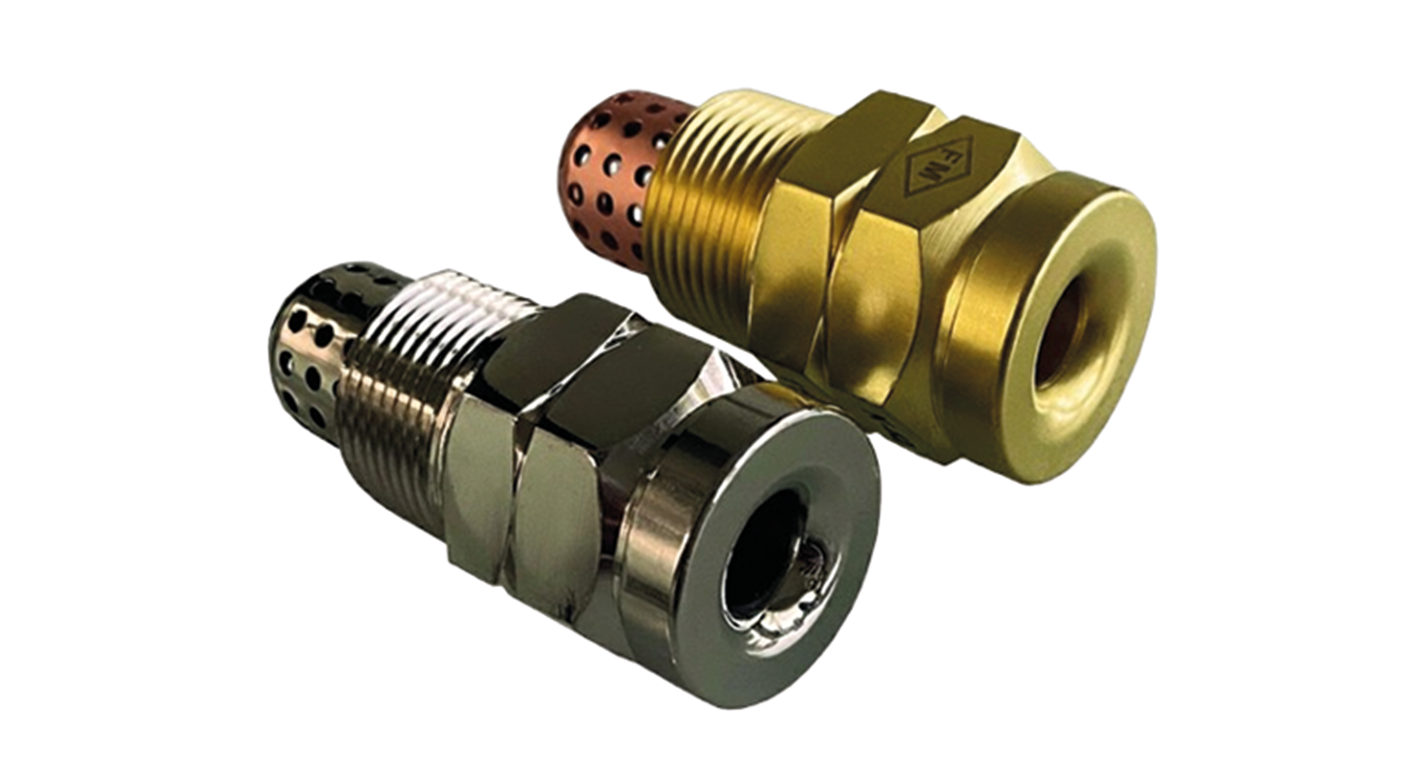

ISE – HV SN High Velocity Water Spray Nozzle

High-velocity spray nozzles are essential for both surface cooling and fire extinguishing in high-hazard areas, such as oil-filled transformers, chemical process equipment, conveyor systems, and flammable liquid storage. For optimal performance, a nozzle pressure of 3.5 bar to 7 bar is recommended, allowing for the rapid extinguishing of fires through the process of emulsification. While these nozzles feature built-in strainers to prevent internal clogging, it is still required to install a main strainer in the system pipeline to ensure continuous, reliable operation.

Description Value
HV SN – 01 Brass
HV SN – 02 Stainless Steel

Technical Specification

  • Maximum Working Pressure 12.3 bar (175 psi)
  • End Connection: ¾” BSPT
  • Included water spay angle and K-Factor
    • Spray Angle K-Factor
    75° Km-22 (1.54)
    80° Km -18 (1.26)
    100° Km-26 (1.82)
    115° Km-42 (2.94)
    120° Km-23 (1.61)
  • Weight: Approx 0.200KG

Description

  • Open nozzle specifically engineered for fixed water spray or deluge systems.
  • Produces a solid, uniform, and dense core of high-velocity water for effective fire control and suppression.
  • Includes a blow-off cap to prevent dust, debris, or foreign materials from clogging the waterway.
  • Primarily used for high-risk fire protection scenarios where rapid extinguishment is critical.
