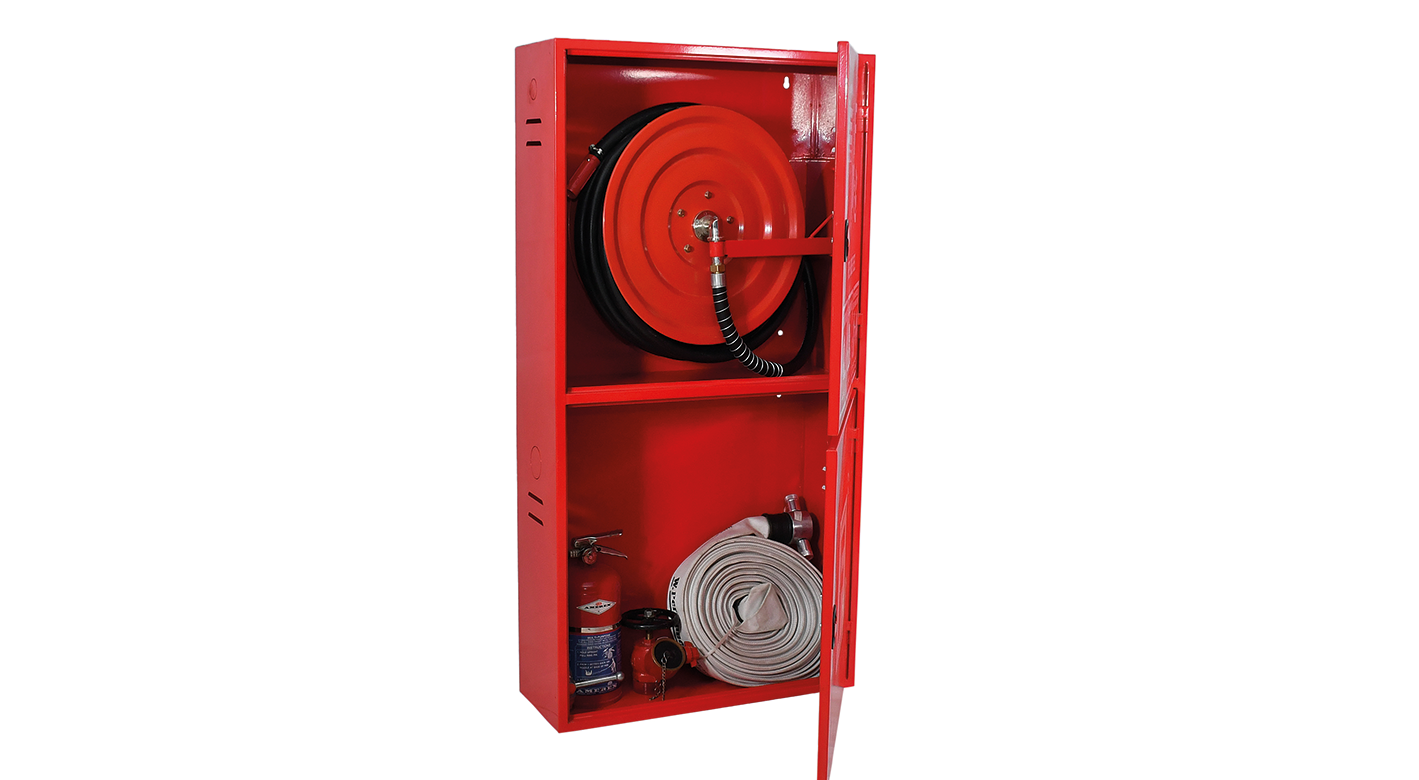

This wall-mount or reassessed cabinet features a universal design that allows for both left and right pipe connections via two dedicated knockouts. The unit supports piping networks from the top or bottom and includes two separate compartments with doors that, along with the hose reel, swing out a full 180° for unobstructed access. While the standard finish is a durable red epoxy powder coat, a stainless steel option is also available to suit specific environmental requirements.

Model No.	Description
VDHC – 01 M	Mild Steel body & Door
VDHC – 02 SS	Stainless Steel body & Door
VDHC – 03 MS	Stainless Steel Door & Frame, Mild Steel Body

Technical Specification

• Dimension: L x W x D 1600 x800 x300 mm.
• Hose reel is fully assembled prior to fitting in cabinets.
• Cabinet has a 10 mm hole at the bottom to drain water leakage.
• Cabinet is made of stainless steel sheets, 1.2mm thick. (Thickness can be changed upon request)
• Door and hose reel swing out full 180°
