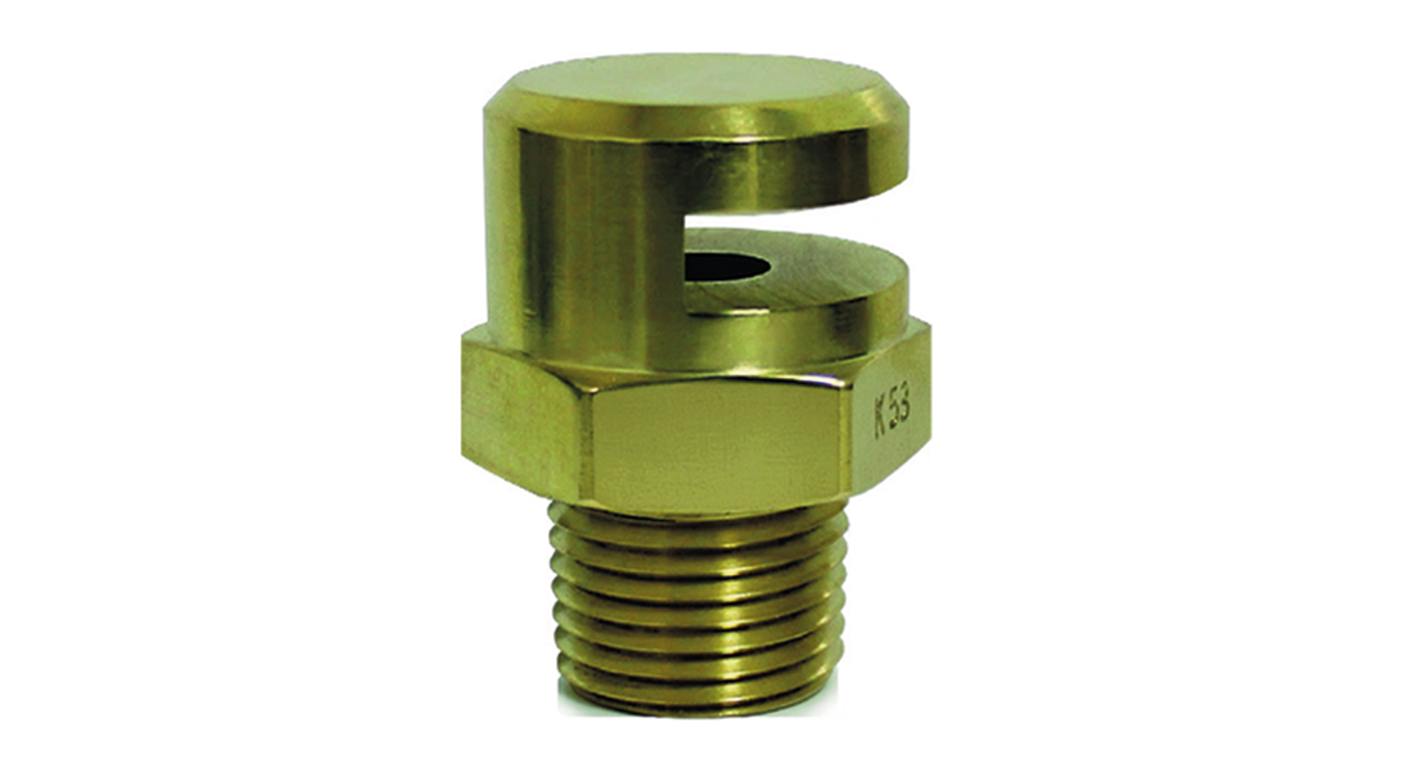

To ensure optimal performance, these spray nozzles must be handled with due care during transport and installation. When mounting, the nozzles should be securely tightened into the fitting using Teflon tape or a soft thread sealant on the male threads to prevent leaks. It is essential that all installations are carried out in strict accordance with the latest published NFPA standards. When correctly positioned, these nozzles provide an effective application for the rapid extinguishment of fires through the process of emulsification.

Description	Value
WCN – 01	Brass
WCN – 02	Stainless Steel

Technical Specification

• End Connection: ¾” BSPT
• K – Factors:
• Km-20
• Km-23
• Km-42
• Km-58
• Km-79
• Weight: Approx 0.180KG
